Advantages

Why choose Freyssinet elastomeric bearings for your project

01. Cost-effective solution

Simple design and installation, for:
  • moderate vertical loads (less than 12,000 kN)
  • movements up to ± 250 mm
  • horizontal forces transmission up to 800 kN
  • 02. Good performance under dynamic load

    Reduction in the acceleration transmitted to the superstructure, allowing their use as dynamic isolators in buildings and other structures.

    03. Large range of operating temperatures

  • Minimum -25°C for chloroprene, -40°C for natural rubber
  • Maximum +50°C (peak temperature: +70°C)
  • 04. Long service life, maintenance free

  • The reinforcing plates are embedded in the elastomer to protect them against corrosion.
  • Great care is given to the specification of the rubber compound, the surface treatment of the steel sheets, the assembly and moulding.
  • 05. High rotation capacity

    Up to 30 mrad

    06. Approved products

    Freyssinet’s natural rubber and chloroprene bearings comply with national and international standards, and are covered by CE marking.

    07. End-to-end services

    Not only products. But the full range of services, including design, tests, manufacturing, installation and maintenance.
    Elastomeric bearings

    Our range of products

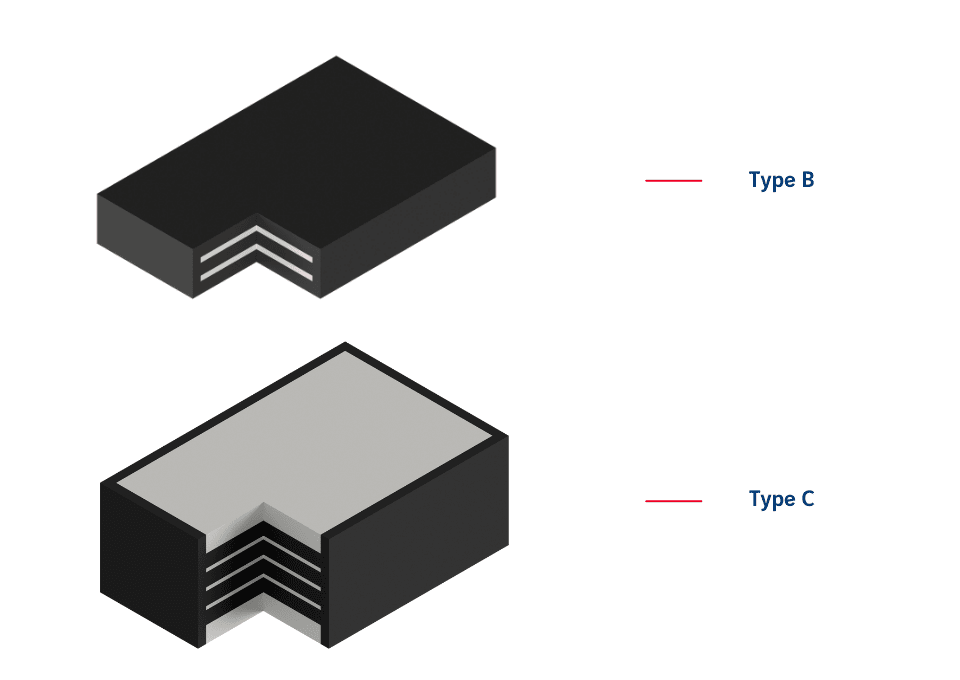

    Standard elastomeric bearings - Type B, Type C

    Standard elastomeric bearings – Type B, Type C

    They consist of 2 to 12 laminated elastomer layers vulcanized on steel plates. Natural or chloroprene rubber.

    The bearings are individually moulded and the reinforcing plates are embedded in the elastomer with a side coverage of at least 4 mm and outer layers of 2.5 mm thickness (type B) or thick outer bands (type C).

    Their cross-section is rectangular, square or circular depending on site requirements.

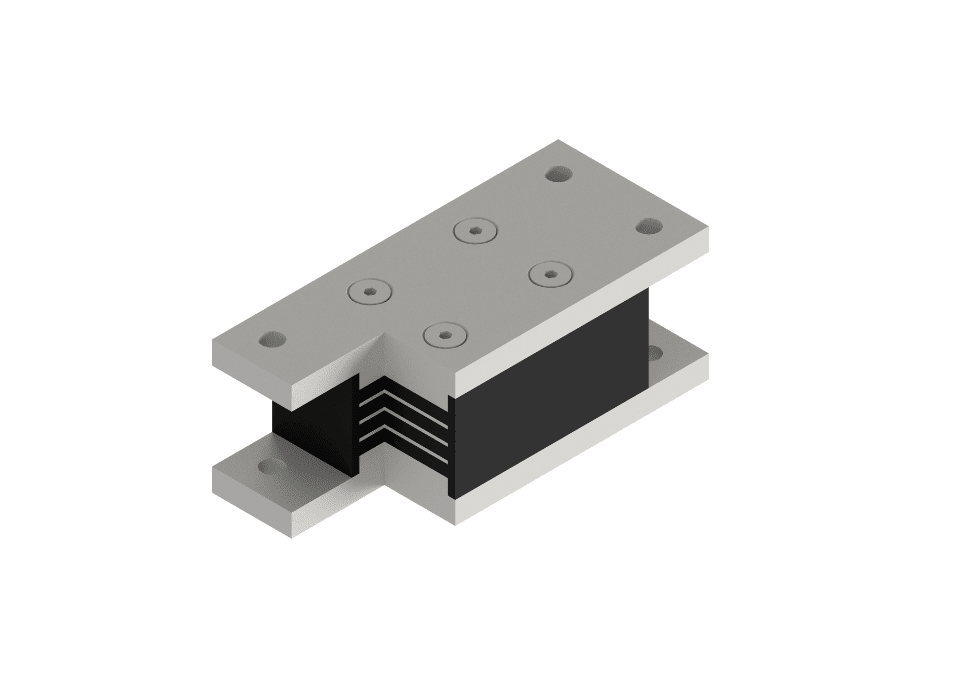

    Bearings with anchor plates – Applicable to type C

    These bearings offer various configurations to cover different connection needs:

    • corrugated outer plates to ensure a thin connection
    • outer plates, anchor plates and connection devices
    • outer plates, anchor plates and shear discs
    Bearings with anchor plates – Applicable to type C

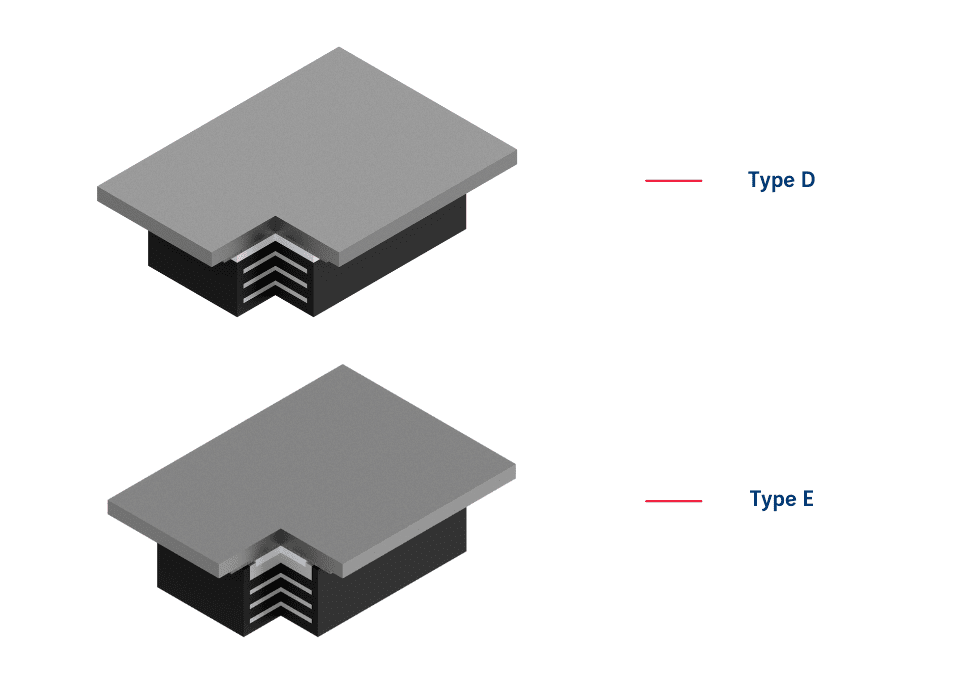

    Bearings with sliding surface – Type D, type E

    Bearings with sliding surface – Type D, type E

    For bridges requiring large movements, laminated elastomer bearings can be equipped with:

    • a sliding surface comprising a PTFE (polytetrafluoroethylene) sheet bonded to the elastomer (type D) or notched in the steel sheet (type E)
    • a sliding plate integrating an austenitic steel sheet.

    Their resistance to movement is hence limited to the friction between the lubricated PTFE plate and the polished austenitic steel sheet.

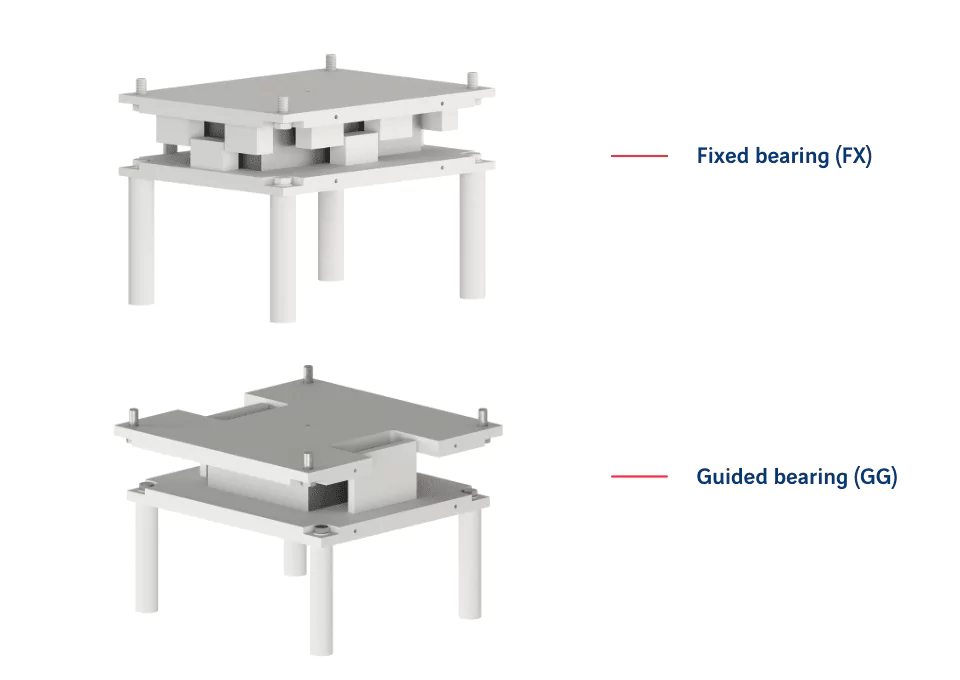

    Restrained bearings – Applicable to type B, D and E

    The addition of steel guides welded to the anchor plate allows the transfer of higher lateral and/or longitudinal loads in either direction.

    Restrained bearings – Applicable to type B, D and E

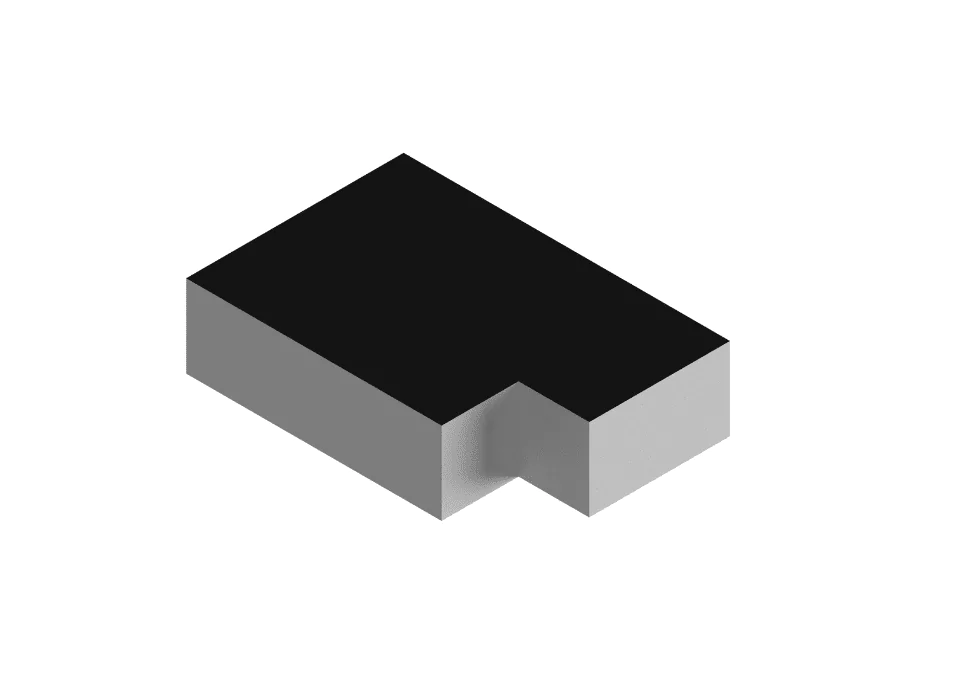

    Plain pad bearings – Type F

    Plain pad bearingsType F

    They consist of a single piece of elastomer, natural or chloroprene rubber.

    They can be supplied as rectangles, squares or strips, depending on site requirements and are generally used for buildings.
